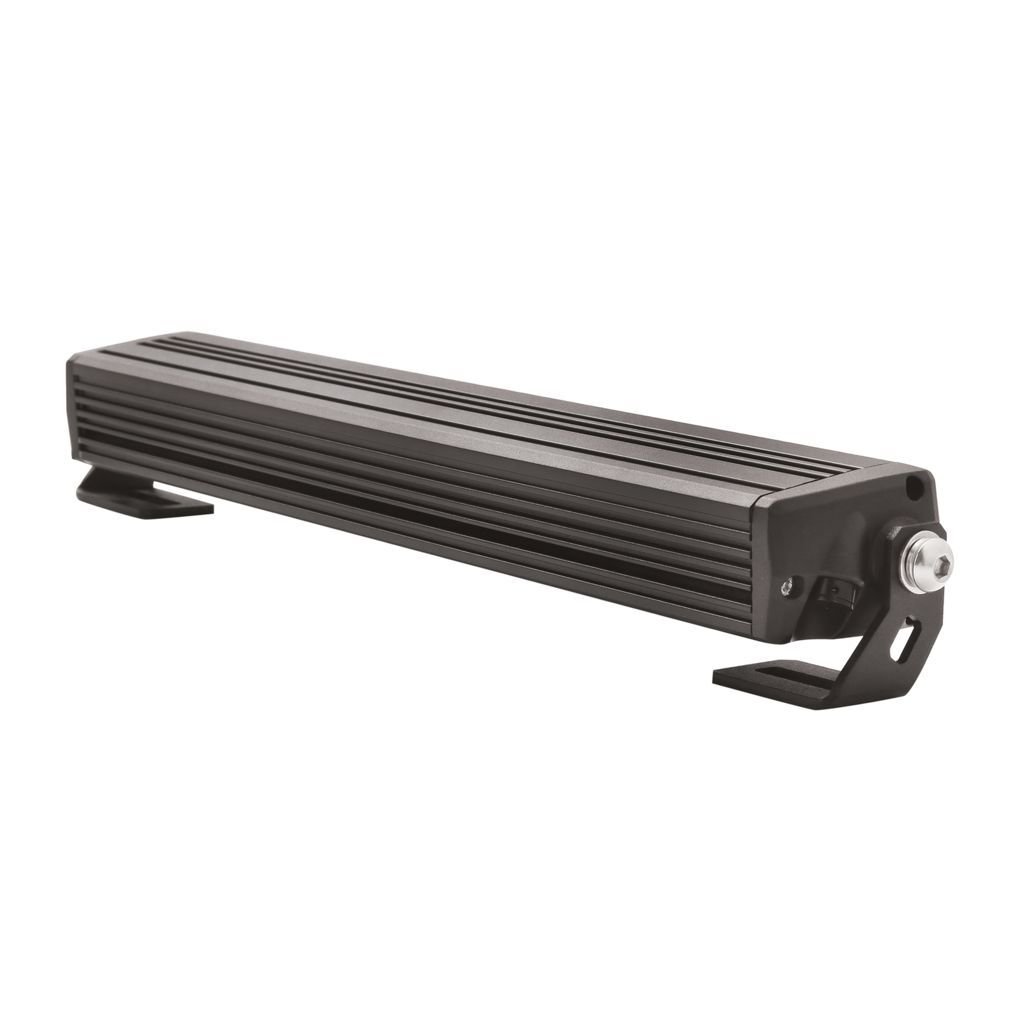

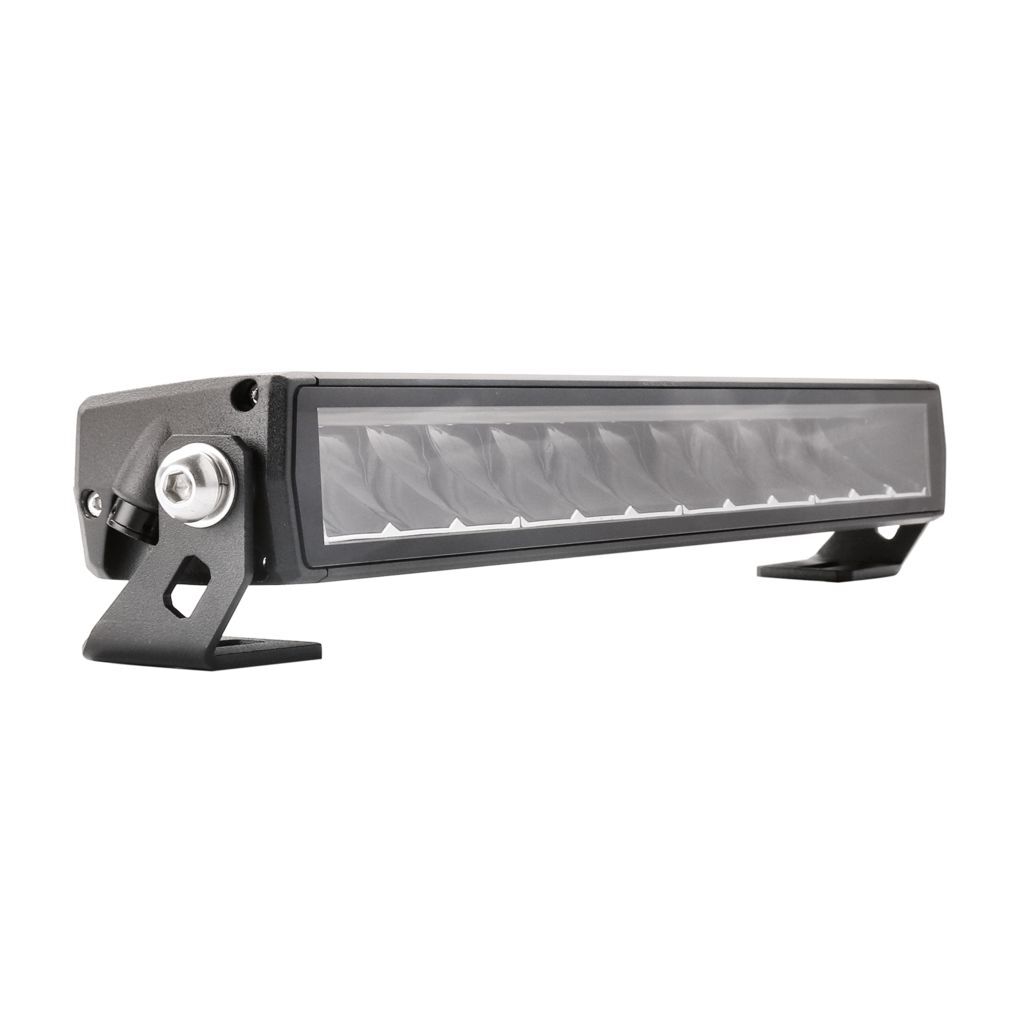

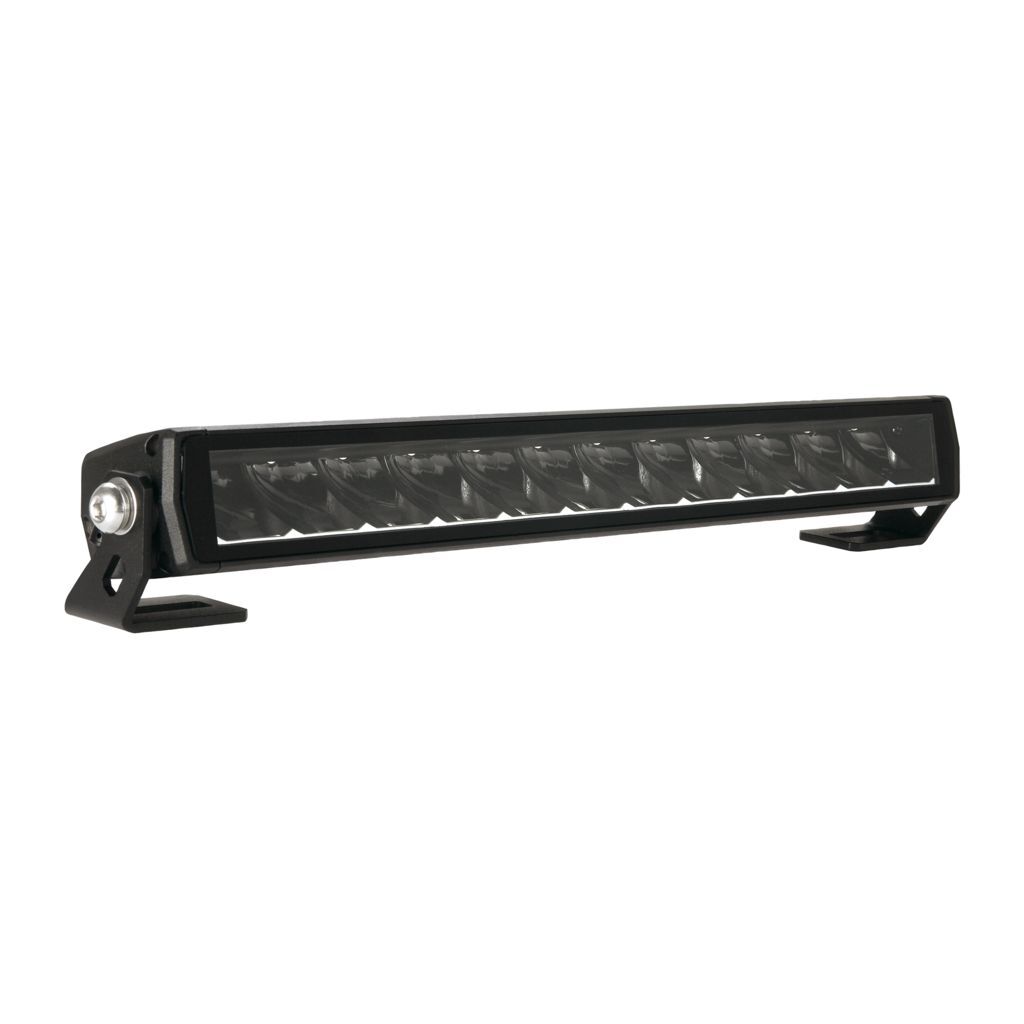

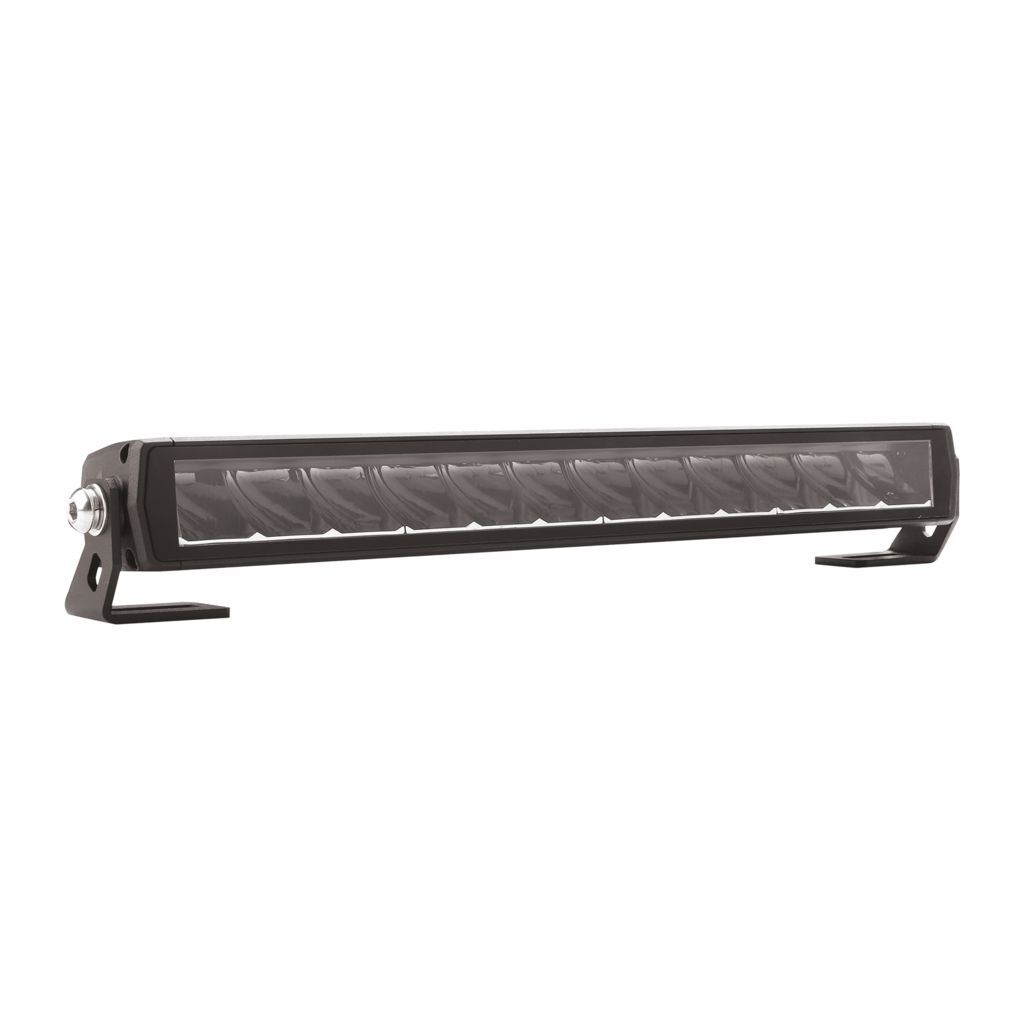

14" Single Row 12 Led Light Bar

Features

• Ultra Slim - 40.5mm height for Single Row Lightbars & 52.5mm depth for both Single Row & Dual Row Lightbars

• Flush Front Fascia with no Exposed Screws - Easy to clean & no chance of screws corroding

• Black anodised polyester powder coated extruded 6063 Aluminium housing with integrated heat-sink & pressure equalising vent

• Polycarbonate reflector focusing optic drive technology with Lexan polycarbonate lens

• Cross slider bracket assembly allows the bottom brackets to be positioned anywhere along bar’s length

• 500mm lead with 2 Pin deutsch plug

• Provided with:

  1. Bottom Mount Bracket - 6063 Aluminium

  2. Side Mount Bracket - SUS201 Stainless Steel

Specifications

• Driving beam

• 120W, 12 x 10W high intensity LP LED’s

• 8,800 Raw & 7,500 Effective Lumens

• 1 Lux @ 360m & 129,300cd peak beam intensity

• 9 – 36V Multi voltage

• Current Draw: 5.3A @ 12V & 2.5A @ 24V

• 358mm length

• Weight: 1.13kg
