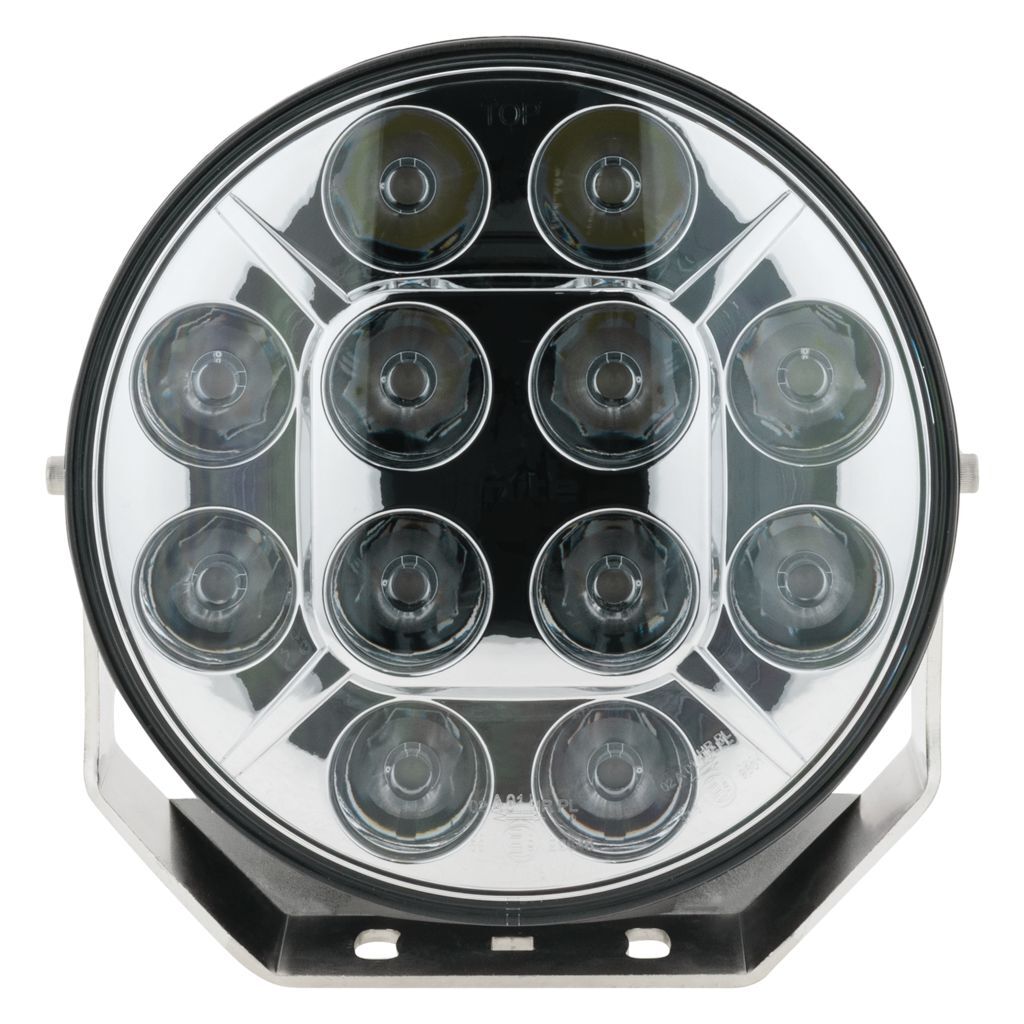

9" Ignite Round Slimline LED Driving Light 9 - 36 Volt 120 Watt
Patented TIR Polycarbonate Retractors and Reflectors with Lexan Polycarbonate Lens
Integrated Electronic Thermal Management (ETM)
Black anodised Powder coated Die Cast Aluminium Alloy (ADC12) Housing with integrated
Heat-Sink and Pressure Equalising Vent
Stainless Steel (SUS304) Multiple Bolt Mount Bracket and Hardware
230mm Lead with 2 Pin Deutsch Plug
Over and Under Voltage Protection
With Chrome Fascia
Reverse Polarity Protection
UV, Water and Shock resistant to 6G
Anti-rust, Corrosion and Freezing Resistance
50,000 Hours LED Lifespan
ECE R112 (Ref 50), R10, R7 and CE Approved
IP68 and IP69K Rating
Environment Temperature: -40°C ~ +60°C
5 Year Warranty
Weight: 1.9kg
Spare Parts:-
8° Spot (Pencil) Beam
IDL1210A Amber Protective Lens Cover
IDL1210B Black Protective Lens Cover
IDL1210C Clear Protective Lens Cover
IBB50MM Bull Bar Mounting Bracket 50mm
IBB64MM Bull Bar Mounting Bracket 64mm
IBB76MM Bull Bar Mounting Bracket 76mm
12 x 10 Watt High Intensity CREE XM-L2 LED's
12,000 Raw and 9,600 Effective Lumens and 6,500K
1 Lux @ 545m and 297,025cd Peak Beam Intensity
Current Draw: 7.7amp @ 12 Volt and 3.6amp @ 24 Volt
