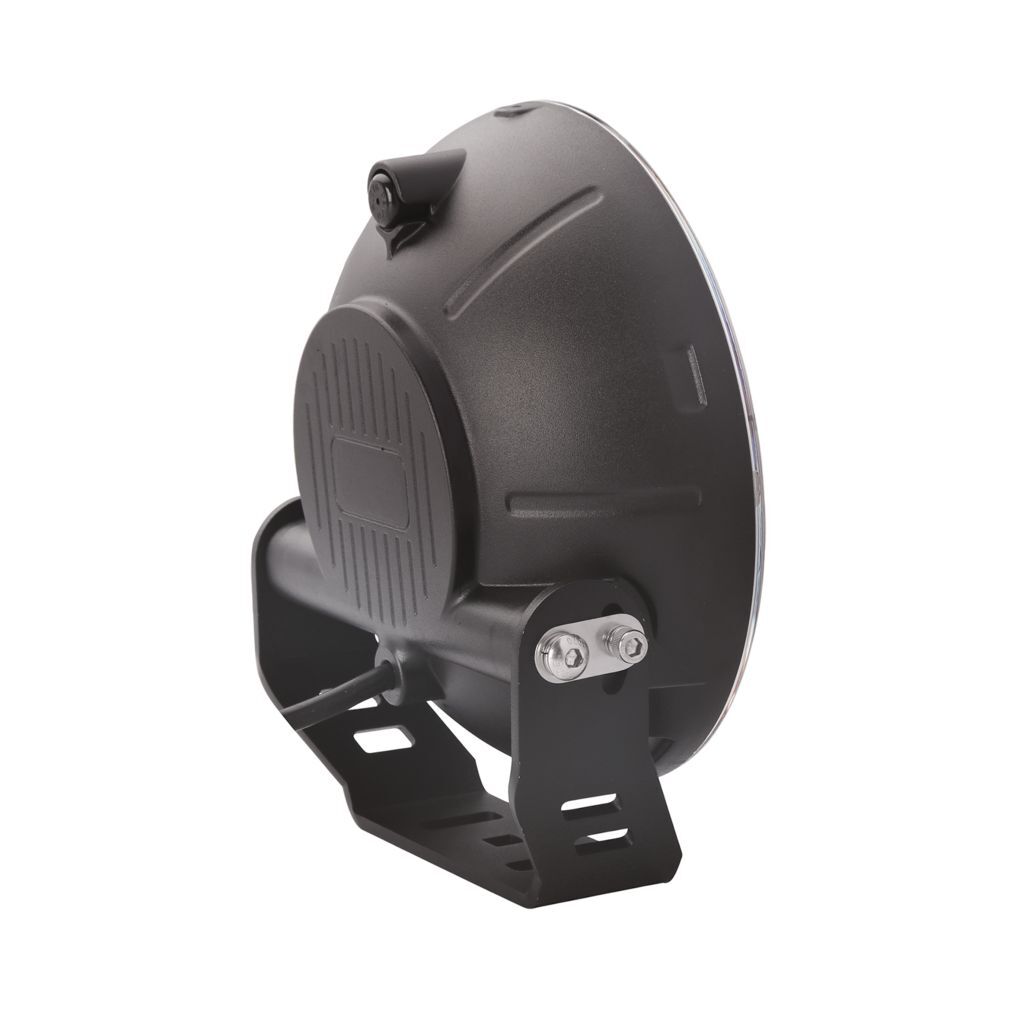

9" Round Led Driving Lamp Black

Features

• With White/Amber front position lamp function

• Driving beam pattern

• 9 – 36V Multi voltage

• 5,700K colour temperature

• Combined polycarbonate reflector focusing optic drive technology

• Optical system reflector technology with Lexan polycarbonate lens

• Integrated Electronic Thermal Management (ETM)

• Black powder coated die cast aluminium alloy (ADC12) housing with integrated heat-sink & pressure equalising vent

• 500mm lead with 2 Pin deutsch plug

• Pre-wired weatherpoof deutsch connector

Specifications

• 1 Lux @ 469m

• 12,000 Raw & 10,200 Effective Lumens

• 4 x 20W high intensity CREE LED’s & 4 x 10W high intensity CREE LED’s

• 215,000cd peak beam intensity

• Current Draw: 8.9A @ 12V & 4.3A @ 24V

• Weight: 2.1kg
