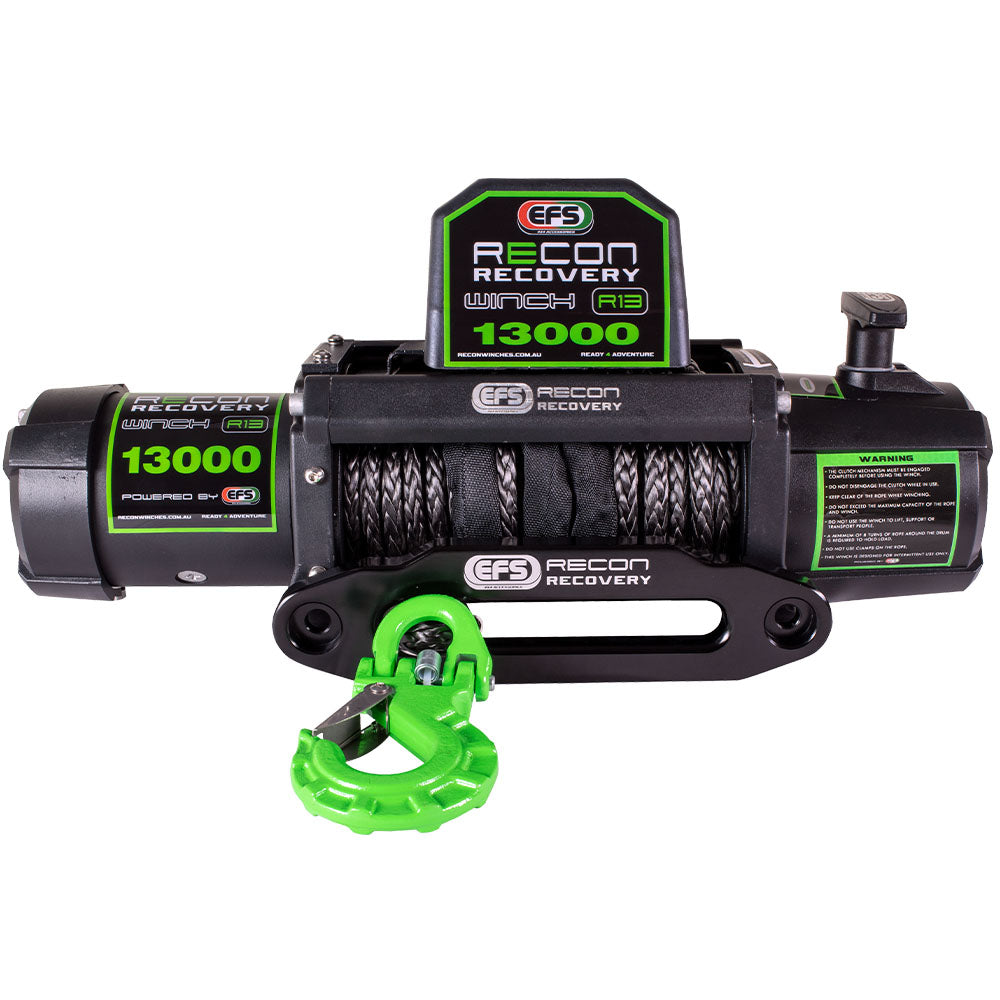

EFS RECON 13000lb ELECTRIC WINCH 25M SYNTHETIC ROPE WITH BREATHER KIT The EFS Recon R13 Winch has been developed with a super fast retrieve rate and boasts a 13,000 LBS rated single line pull. The R13 has a full load automatic brake with a 265:1 gear ratio and comes complete with all pictured accessories.
Specifications:
- 13,000lbs / 5,900kg rated single line pull
- 6.0HP 12volt series wound balanced electric motor waterproof motor/gearbox
- 3 stage zinc plated hardened planetary gears
- Motor breather kit
- Rotating ring gear clutch with T-handle clutch engagement
- 265 : 1 gear ratio
- 18,000lbs SYNTUFF synthetic multi-strand rope
- High strength anti-bind nanotechnology
- Abrasion resistant – 10mm diameter – 25 metre length
- Full load automatic brake located at the motor side of the drum
- Designed for synthetic rope – no heat build-up in the drum
- Recommended battery 650 CCA minimum for winching
- Battery leads: 1.83m
- Shipping weight: 38kg
- Winch dimensions (LxWxH): 562mm x 160mm x 172mm
- Packing dimensions (LxWxH): 650mm x 250mm x 410mm
- Mounting bolt pattern: 254mm x 114.3mm
- Fairlead: Aluminium
- Control box relay: 450A
- Waterproof
- Includes wireless & wired remote 3.6-metre lead
We recommend a battery isolation switch to be used.
