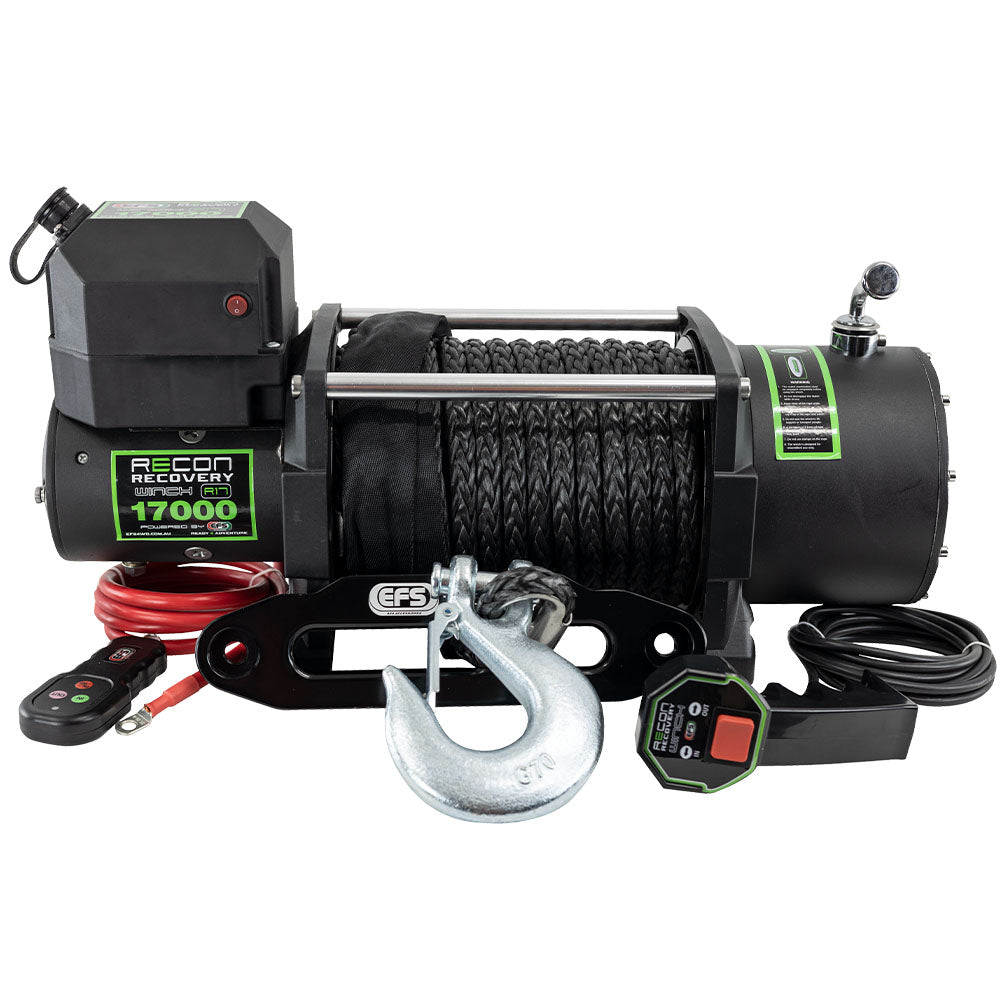

EFS RECON 17000 LBS (7720KG) electric winch, 12 volt, remote safety switch comes with wireless and wired remotes, automatic motor brake which reduces drum heat.
Specifications:
| Part Number |
RECON-17 |
| Single line rated pull |
17,000lb (7,720kg) |
| Motor |
12V 6.0hp/4.5kw Series Wound |
| Control |
Remote Switch,3.6m lead & wireless remote |
| Gear Ratio |
360:1 |
| Clutch |
Sliding ring gear |
| Braking Action |
Automatic in the motor bracket. No heat on drum when winch works |
| Drum Size |
90mmx224mm |
| Rope |
12mmx24m |
| Fairlead |
Aluminum Hawse |
| Weight |
54kg |
| Overall Dimensions(LxWxH) |
587x215x246mm |
| Packing Dimensions(LxWxH) |
650x410x254mm |
| Mounting bolt pattern |
254×114.3mm |
| 12V DC performance specs (first layer of drum) |
Line Pull
Lbs.(Kgs.)
|
Line Speed
M/min
|
Motor
Current
|
Pull by layer
layer/Lbs(Kgs.)
|
| 0 |
7.2 |
75 amps |
1/17,000 (7,720) |
| 2000 (910) |
3.1 |
120 amps |
2/14,160(6,430) |
| 6000 (2725) |
2.6 |
190 amps |
3/11,800 (5,360) |
| 10000 (4540) |
2.0 |
280amps |
4/9,830(4,465) |
| 14000 (6355) |
1.4 |
340 amps |
|
| 17000 (7720) |
1.0 |
410 amps |
We recommend a battery isolation switch to be used & to check measurements to see if winch will fit into bar
