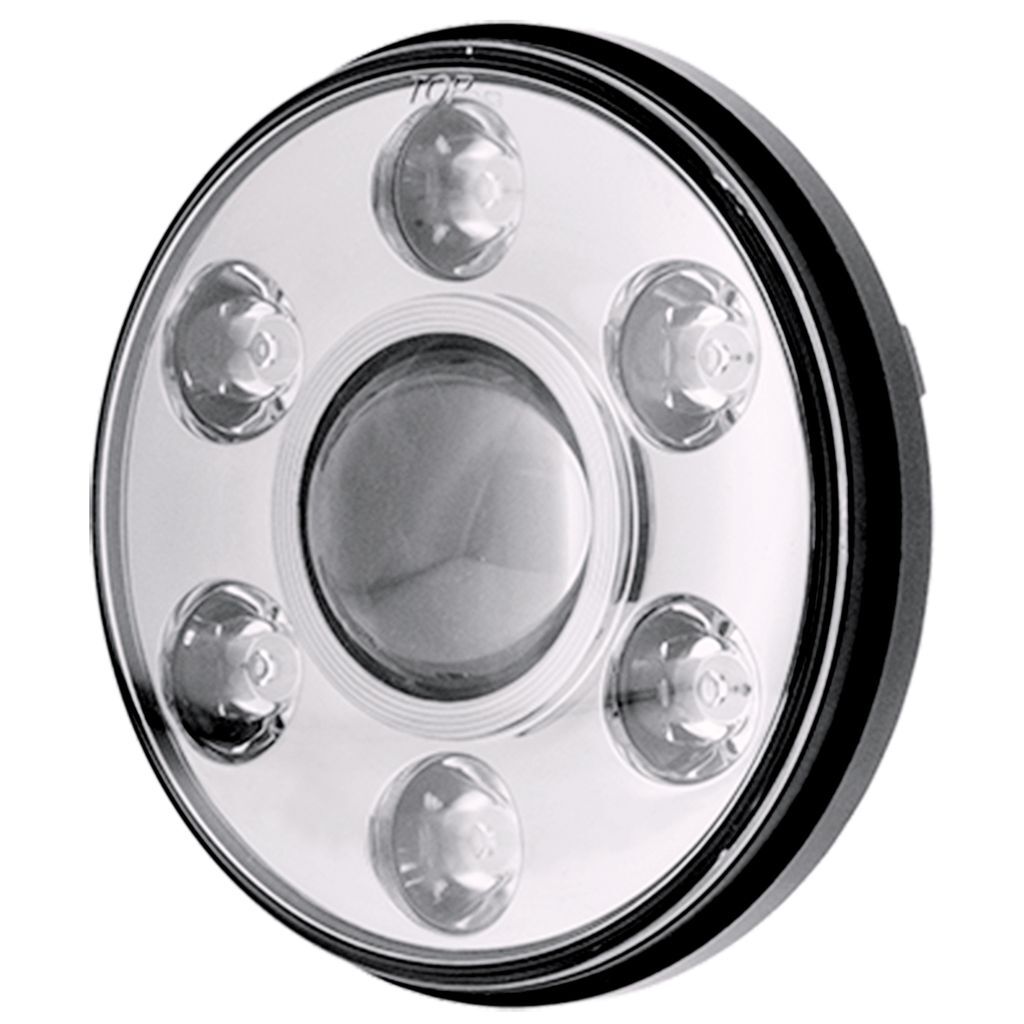

Ignite 7" Round LED Headlamp 9 - 36 Volt 65 Watt
High/Low Beam and Park Light - Chrome Fascia

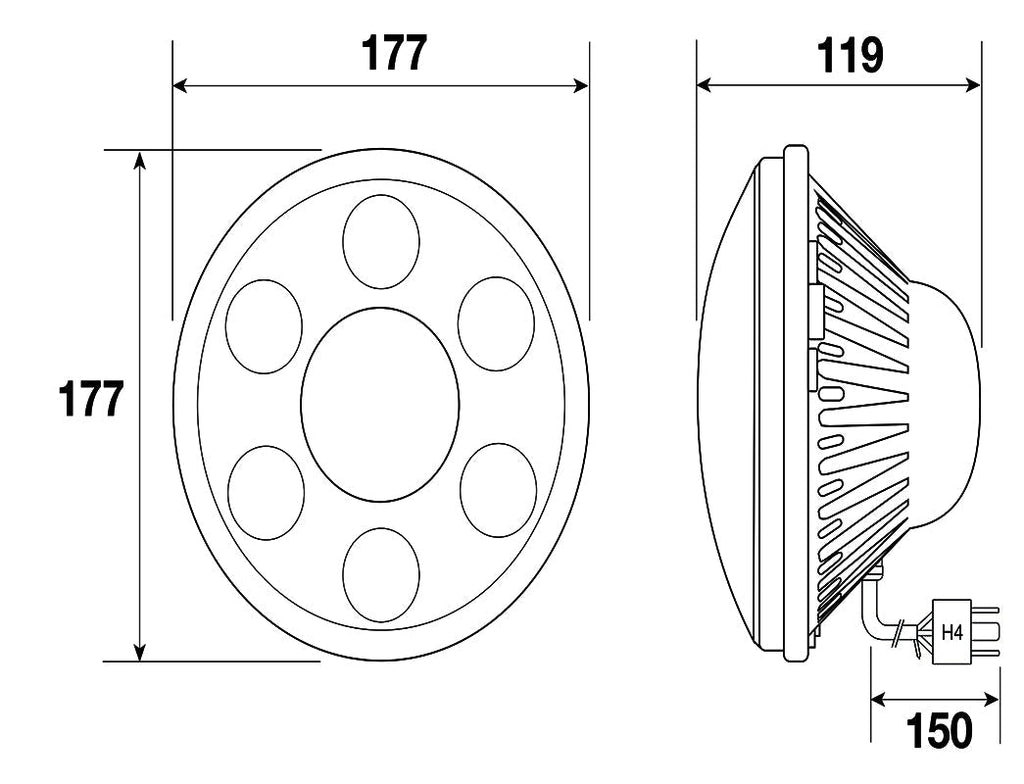

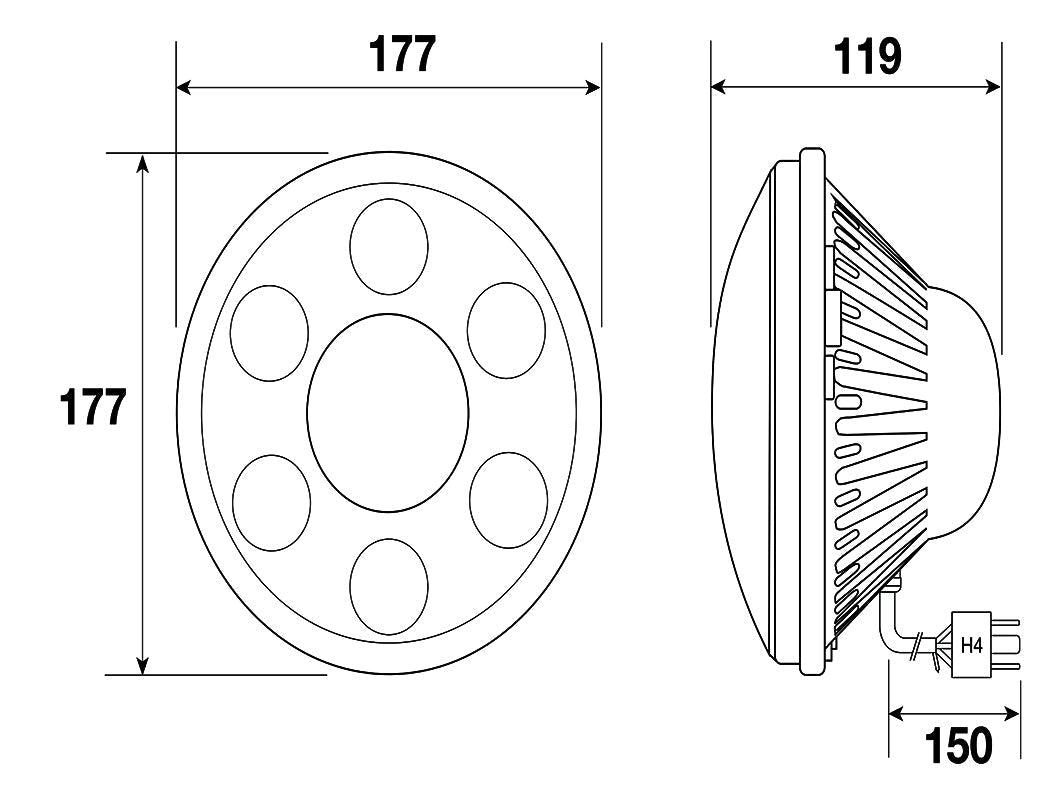

7" or 178mm Round

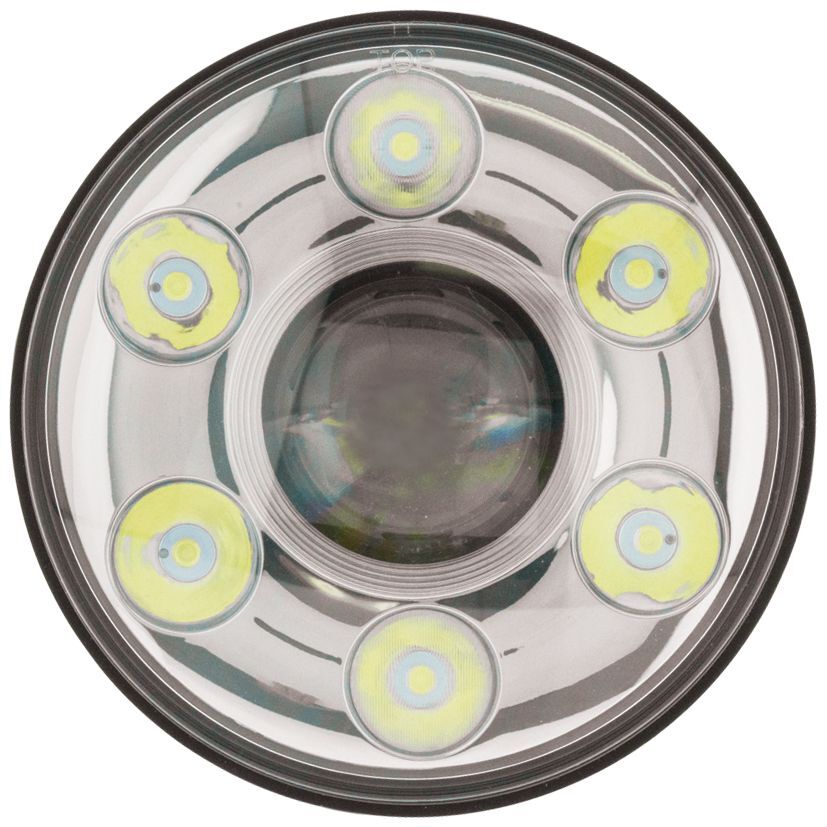

6 x 10 Watt High-Intensity CREE LEDs for Park Light and High Beam
1 x 5 Watt High-Intensity LUMI LED for Low Beam
Current Draw: 4.1amp at 12 Volt, 1.8amp at 24 Volt High Beam
1.7amp at 12 Volt, 0.8amp at 24 Volt for Low Beam
High Beam 3,900 Raw or 3,315 Effective Lumens and 6,500K

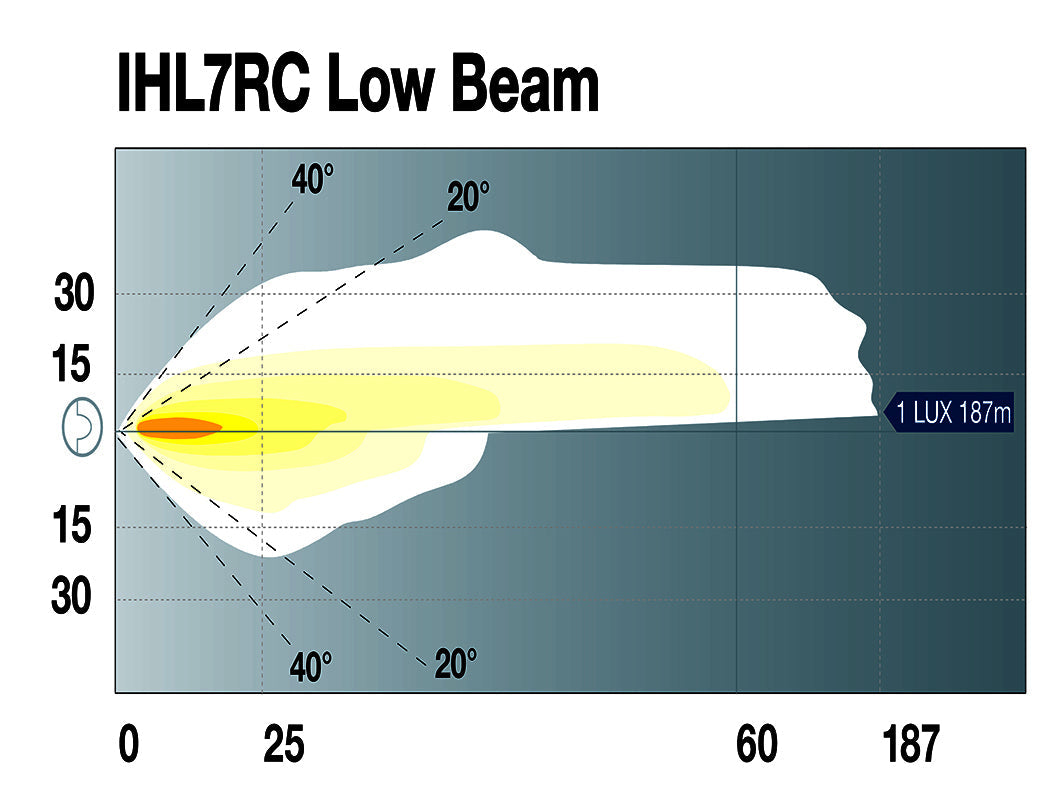

Low Beam 1,800 Raw or 1,530 Effective Lumens and 6,500K
Lexan Polycarbonate Lens and Reflectors
Patented TIR Lens Optics System for High Beam and Park Lights
Black anodised Polyester Powder Coated Die-Cast Aluminium (ADC12) Housing
6063 Extruded Aluminium Heat Sink

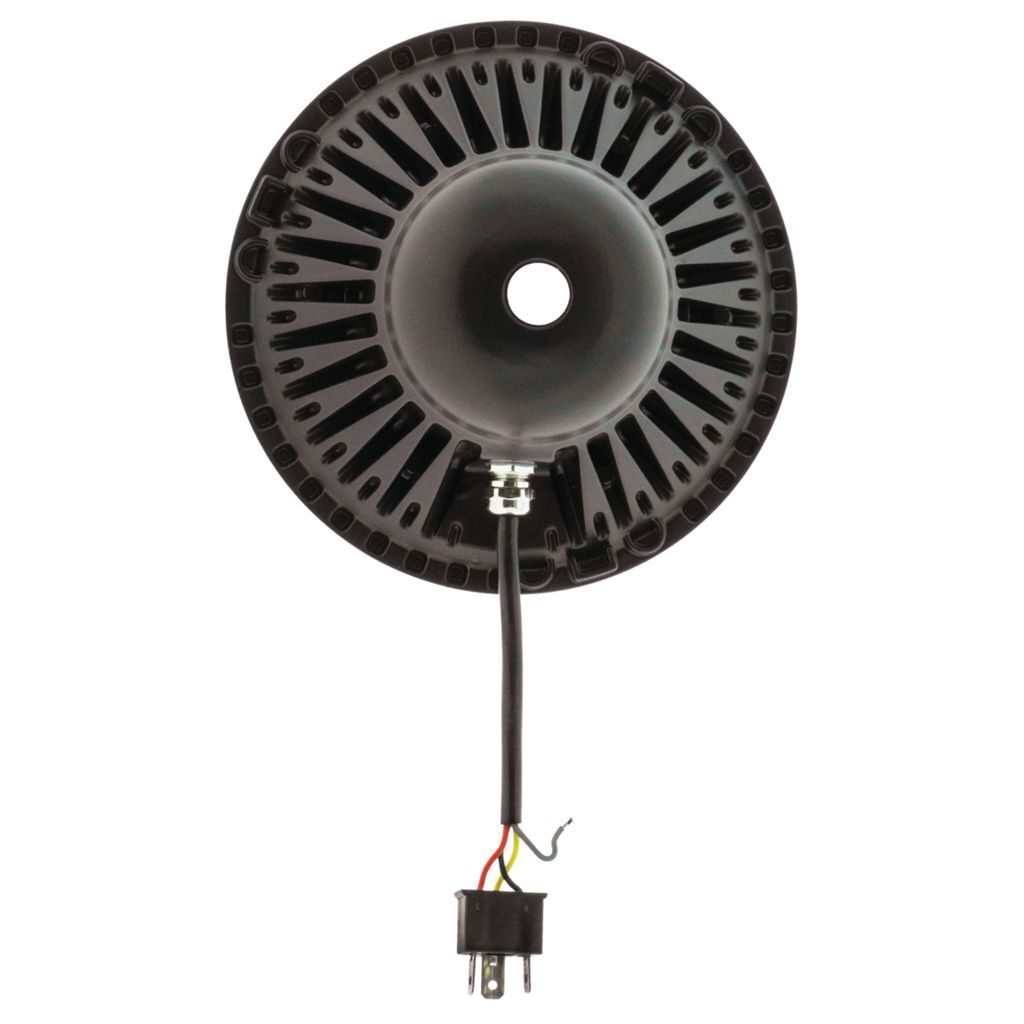

150mm Lead with H4 Connector and High Beam Adaptor Plug
50,000 Hours LED Lifespan
Integrated Electronic Thermal Management (ETM)
Reverse Polarity and Power Surge Protection
UV Stabilized
EMC Compliant
Shock Resistant, Vibration Tested to 6G's
Environment temperature -40~+60 °C
ECE R112 / R7, DOT, CE Certified
IP68 and IP69K Rating
1.4kg
5 Year Warranty
Notes:
Replaces PAR56 Headlights, either Sealed or Semi-Sealed Beams
For Negatively Switched vehicles must use Adaptor Harness Part No. IWH030
Adaptor lead supplied for Headlight to work purely as a High Beam unit only
