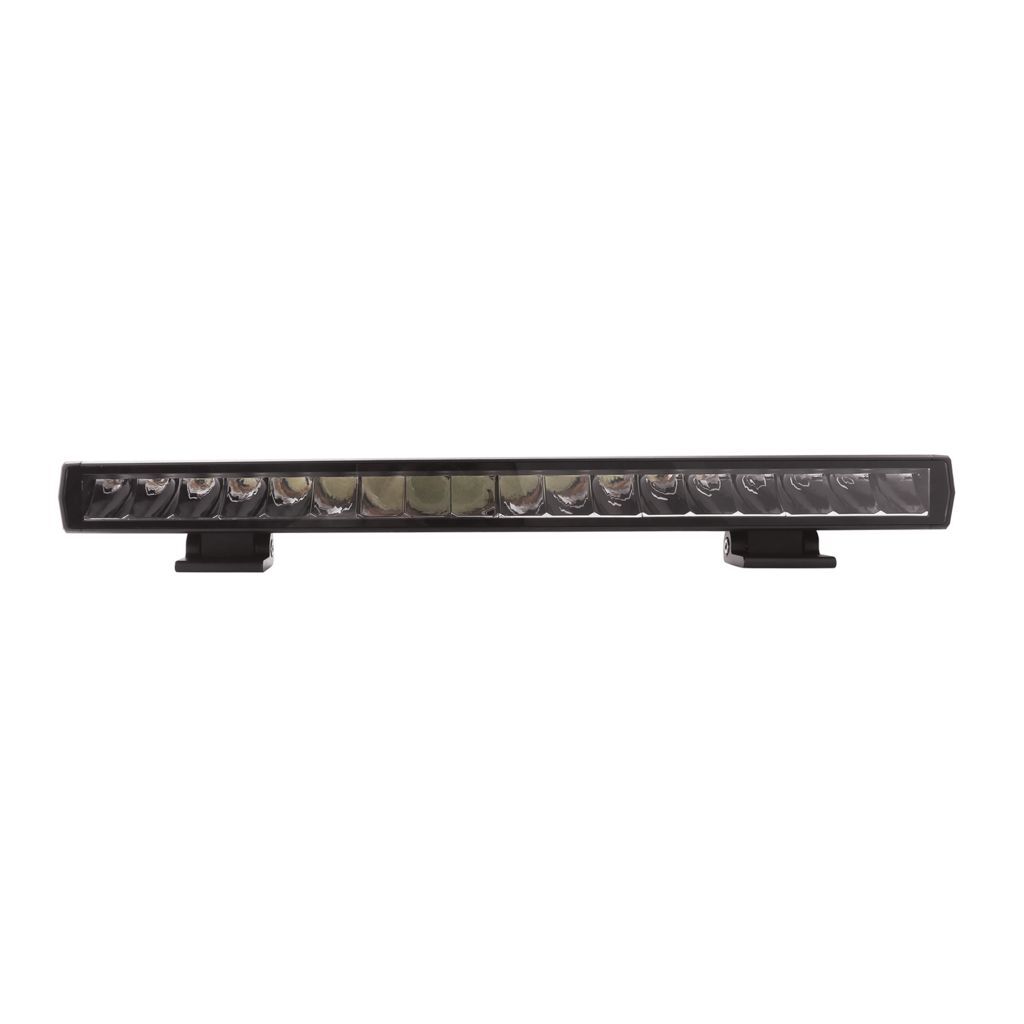

20" Single Row 18 Led Light Bar

Features

• Ultra Slim - 40.5mm height for Single Row Lightbars & 52.5mm depth for both Single Row & Dual Row Lightbars

• Flush Front Fascia with no Exposed Screws - Easy to clean & no chance of screws corroding

• Black anodised polyester powder coated extruded 6063 Aluminium housing with integrated heat-sink & pressure equalising vent

• Polycarbonate reflector focusing optic drive technology with Lexan polycarbonate lens

• Cross slider bracket assembly allows the bottom brackets to be positioned anywhere along bar€™s length

• 500mm lead with 2 Pin deutsch plug

• Provided with:

  1. Bottom Mount Bracket - 6063 Aluminium

  2. Side Mount Bracket - SUS201 Stainless Steel

Specifications

• Driving beam

• 180W, 18 x 10W high intensity LP LED€™s

• 13,200 Raw & 11,200 Effective Lumens

• 1 Lux @ 501m & 315,000cd peak beam intensity

• 9 36V Multi voltage

• Current Draw: 8.2A @ 12V & 3.6A @ 24V

• 520mm length

• Weight: 1.46kg
