For owners of the Holden Trailblazer wanting to fit a Lightforce Switch Fascia CBFASCIA2, this switch and harness that has been designed to allow for an easy to install, plug and play solution.

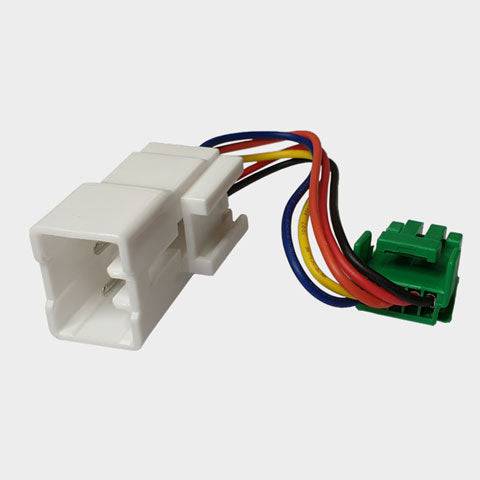

The harness connects directly to the OEM A/C connector of the vehicle, so no splicing into the vehicle's electrical system is required.

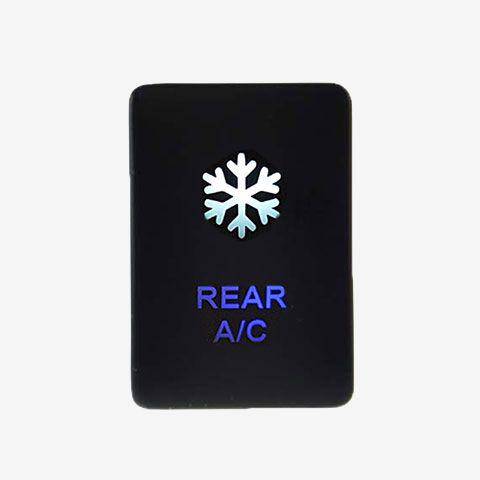

The "REAR A/C" text illuminates in blue when the dash lights are on. The white snowflake icon illuminates in white when the switch is on.
When dash illumination is ON:
- “REAR A/C” light is ON.
- “Snowflake icon” light is ON only when switch is pressed.
When dash illumination is OFF:
- “REAR A/C” and “Snowflake icon” lights are OFF regardless of switch position.
- LED illumination
- Suitable for positive switched vehicles only
- Harness included (300mm in length)
- Current rating 3 amps @ 12v
- Size: 18mm x 28mm
Warning: The switch and supplied harness must be used together. Do not substitute either item.
Vehicle Compatibility
| Make |
Model |
Compatible From |
Compatible To |
| Holden |
Trailblazer |
2017 |
2019 |
