BEAST Wiring Harness is required for the installation of BEAST Driving Lights.
Utilise the full potential of your BEAST Driving Lights by Lightforce, with this dedicated Plug & Play Wiring Harness. This harness is specifically designed to make BEAST’s 3-mode operation compatible with both Mazda BT50 and Isuzu D-Max.
The harness kit comes complete with a dedicated headlight adaptor for simple integration into your vehicle’s headlight circuit.
A very small (8mm in diameter) single moulded 8 pin connector makes installation quick and easy as only one connector is required to pass through the vehicle’s firewall, and connects directly to the BEAST 3-Mode Smart Switch. The smart switch illumination has been colour matched to the factory backlight colour, to ensure an OEM look and feel.
PRODUCT DETAILS
SPECIFICATIONS
12V operation
40 Amp relay
Positive or negative switching (controlled electronically).
KIT INCLUSIONS

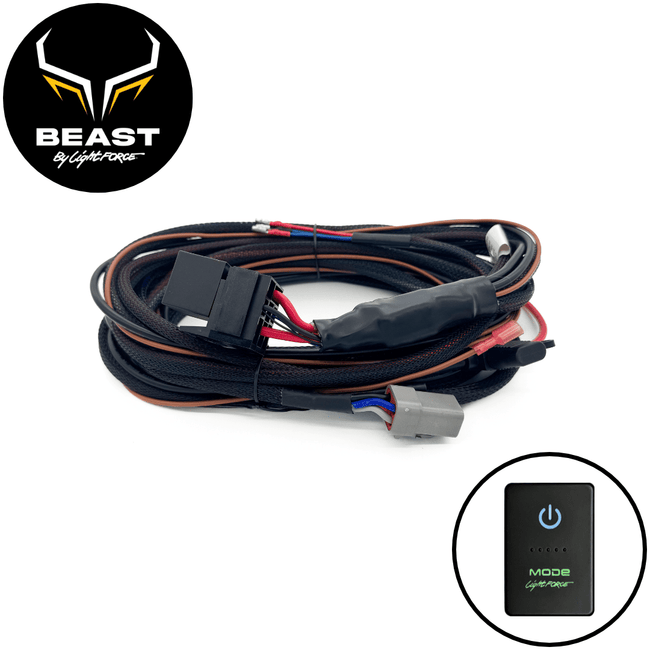

1x Beast driving light harness including relay.
1x 3-mode Smart Rocker Switch with BT50/D-Max adaptor
1x Dedicated headlight adaptor for BT50/D-Max
1x Ignition pickup for BT50/D-Max
Cable ties and mounting hardware
User instructions via QR code
For additional information regarding the BEAST 12V Wiring Harness Kit – Universal Fitment, please refer to the user instructions here.
