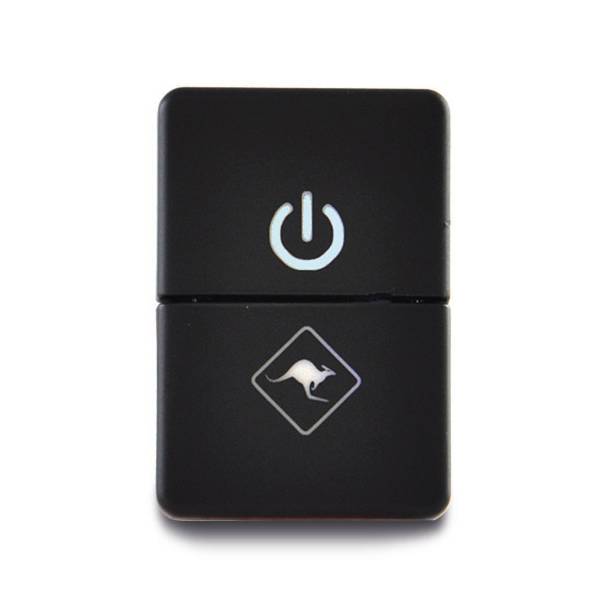

When the new TY2 Dual Input Switch is connected to the Lightforce Dual Input Switch Adaptor #SWADP6, you will have a complete plug and play connection, should you wish to install the Lightforce Harness for Genesis and Venom LED #LFDLHTS2.
This factory style switch features the Lightforce Roo Logo and icon for universal applications. Available for the following vehicles without any modification to the original dashboard.
Toyota 200 Series 2008+, Toyota Hilux MY15+, Toyota Prado 150 Series 2008+, Lightforce Switch Fascia’s (CBFASCIA, CBFASCIA2 (top row) & CBFASCIA3.
Features include:
- Dual inputs providing two independently switched outputs
- Dual coloured illumination – blue (switch illumination) & green (once switch is on)
- Suitable for positive switched vehicles
- Harness included (300mm in length)
- Switch cut out size: 18mm x 28mm
- Australian design patent
The switch must be used in conjunction with a relay as it has a maximum current rating of 3 amps @12v.
Vehicle Compatibility
| Make |
Model |
Compatible From |
Compatible To |
| Ford |
Ranger PX2 (fitted with LF fascia) |
2015 |
2018 |
| Ford |
Ranger PX3 (fitted with LF fascia) |
2019 |
2021 |
| Ford |
Everest (fitted with LF fascia) |
2015 |
2021 |
| Holden |
Colorado (fitted with LF fascia) |
2017 |
2020 |
| Suzuki |
Jimny JB64W/JB74W |
2018 |
2020 |
| Toyota |
200 Series Landcruiser |
2008 |
2020 |
| Toyota |
4Runner |
2008 |
2020 |
| Toyota |
86 (Subaru BRZ / Scion FR-S) |
2012 |
2020 |
| Toyota |
Camry |
2011 |
2014 |
| Toyota |
Corolla |
2006 |
2013 |
| Toyota |
FJ Cruiser (roof console only) |
2011 |
2016 |
| Toyota |
Fortuner |
2016 |
Current |
| Toyota |
Highlander |
2001 |
2007 |
| Toyota |
Highlander |
2008 |
2018 |
| Toyota |
Hilux |
2015 |
Current |
| Toyota |
Kluger |
2008 |
2019 |
| Toyota |
Prado 150 |
2010 |
Current |
| Toyota |
RAV4 |
2006 |
2019 |
| Toyota |
Tacoma (Center Console Only) |
2012 |
2020 |
| Toyota |
Tundra |
2007 |
Current |
| Toyota |
Landcruiser 79 (Plastic Dash) Series |
2021 |
2023 |
