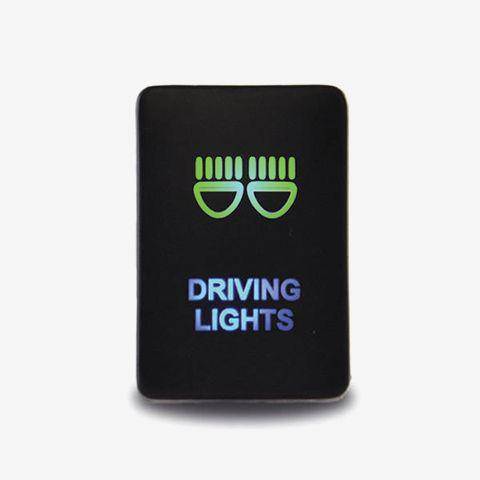

The driving light image illuminates blue via the dash light circuit, with the wording illuminating green as well, once the switch is in the on position.
- Single switched input
- LED illumination
- Suitable for positive switched vehicles only
- Harness included (300mm in length)
- Current rating 3 amps @ 12v
- Size: 18mm x 28mm
The switch must be used in conjunction with a relay as it has a maximum current rating of 3 amps @12v.
Vehicle Compatibility
| Make |
Model |
Compatible From |
Compatible To |
| Ford |
Ranger PX2 (fitted with LF fascia) |
2015 |
2018 |
| Ford |
Ranger PX3 (fitted with LF fascia) |
2019 |
2021 |
| Ford |
Everest (fitted with LF fascia) |
2015 |
2021 |
| Holden |
Colorado (fitted with LF fascia) |
2017 |
2021 |
| Suzuki |
Jimny JB64W/JB74W |
2018 |
2021 |
| Toyota |
200 Series Landcruiser |
2008 |
2021 |
| Toyota |
200 Series (fitted with LF fascia) |
2008 |
2021 |
| Toyota |
4Runner |
2008 |
2020 |
| Toyota |
86 (Subaru BRZ / Scion FR-S) |
2012 |
2020 |
| Toyota |
Camry |
2011 |
2014 |
| Toyota |
Corolla |
2006 |
2013 |
| Toyota |
FJ Cruiser (roof console only) |
2011 |
2016 |
| Toyota |
Fortuner |
2016 |
Current |
| Toyota |
Highlander |
2001 |
2007 |
| Toyota |
Highlander |
2008 |
2018 |
| Toyota |
Hilux |
2015 |
Current |
| Toyota |
Kluger |
2008 |
2019 |
| Toyota |
Prado 150 |
2010 |
Current |
| Toyota |
RAV4 |
2006 |
2019 |
| Toyota |
Tacoma (Center Console Only) |
2012 |
2020 |
| Toyota |
Tundra |
2007 |
Current |
| Toyota |
Landcruiser 79 (Plastic Dash) Series |
2021 |
2023 |
